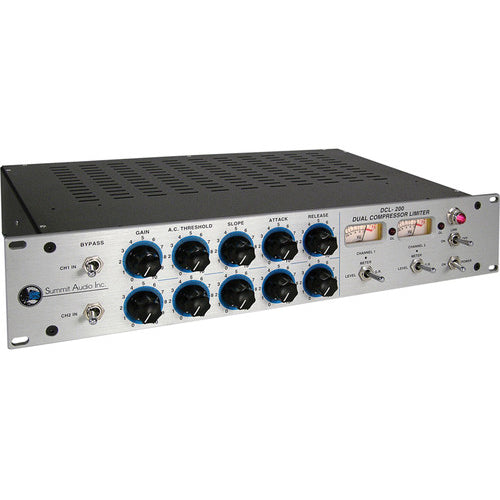

Summit Audio Dual Tube Compressor (DCL200)

Summit Audio Dual Tube Compressor (DCL200)

Tube vs. solid-state technology. It's a debate as old as transistors. Now you can have the best of both worlds with the DCL-200 Compressor/Limiter from a leader in high-end gear, Summit Audio. Based on a proprietary hybrid design, the DCL-200 two-channel compressor-limiter combines the most desirable sonic characteristics of vacuum tubes with the increased reliability of solid-state devices. Its circuitry incorporates selected 12AX7A vacuum tubes with high-reliability 990 op-amps in a transformer less signal path. This exceptional compressor is perfectly suited for use in professional recording studios, MIDI project studios, broadcast facilities, sound reinforcement, and mastering studios. Features include: Continuously variable attack and release times, variable slope, soft-knee transition characteristics, side chain inserts, and peak overload indicators.

Summit Audio Dual Tube Compressor Features:

• Continuously variable attack and release times
• Adjustable threshold
• Variable slope (ratio)
• Output gain control
• Soft-knee transition characteristic
• Stereo link switch
• Dual true VU meters
• Side chain insert
• Bypass switch

Summit Audio Dual Tube Compressor Tech Specs:

• Number of Channels: 2
• Controls: Gain, A.C. Threshold, Slope, Attack, Release
• Threshold: 1.1:1 to 7:1
• Ratio: No Ratio Control
• Frequency Response: 5Hz-70kHz
• Side Chain Inserts: Yes
• Inputs: 2 x XLR
• Outputs: 2 x XLR
• Side chain I/O: 2 x 1/4"
• Rack mount Spaces: 2U
• Height: 3.5"
• Depth: 10"
• Width: 19"
• Weight: 17 lbs.
• Manufacturer Part Number: DCL-200
